Krix MX-5 是澳洲凯瑞斯的入门幕后音障墙，属于私人影院系列。
A compact yet powerful entry into the Series MX range, the MX-5 packs a big punch for its size and can be installed below a conventional projector screen or behind an 透声 screen.
For the movie lover with a small to medium size room, the MX-5 provides big sound in a small package, allowing versatility of installation without taking up valuable space.
Boasting the Krix 波导 and large mid-bass driver, movie soundtracks will be delivered with the articulation and impact you’ve always wanted.

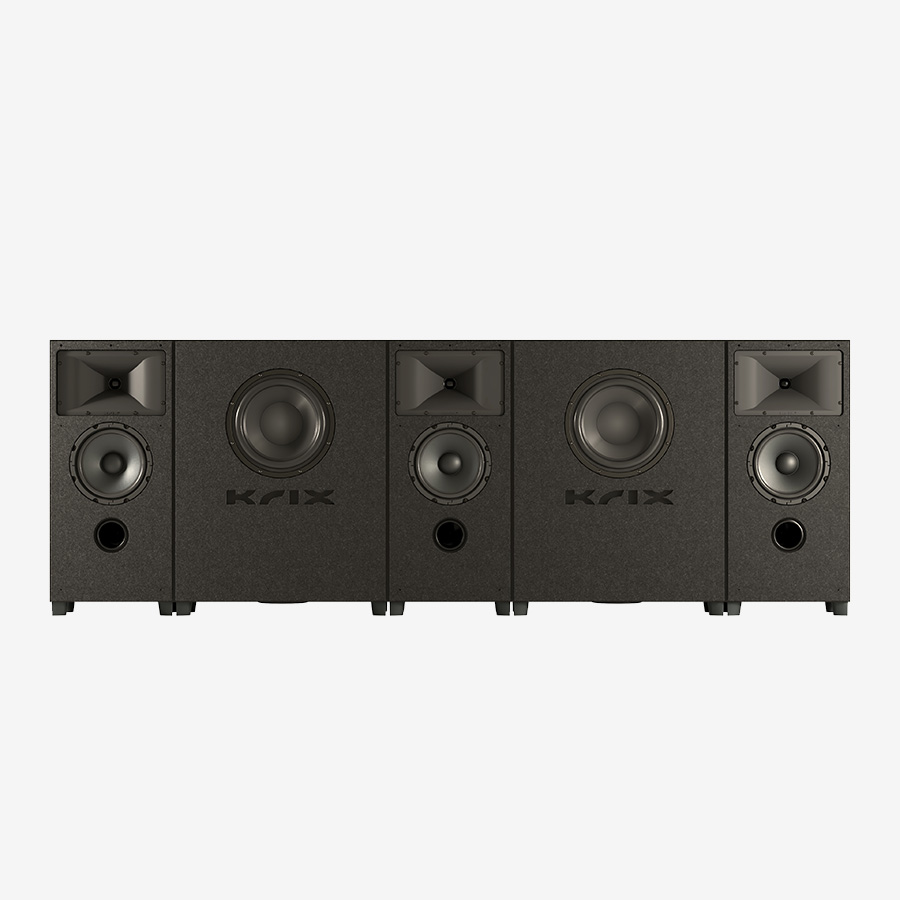

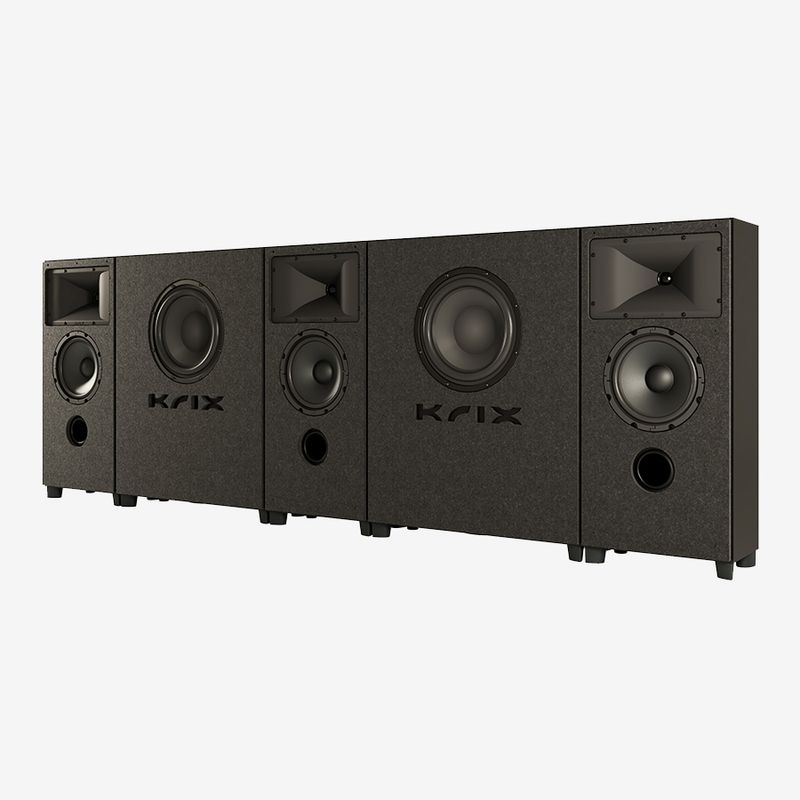

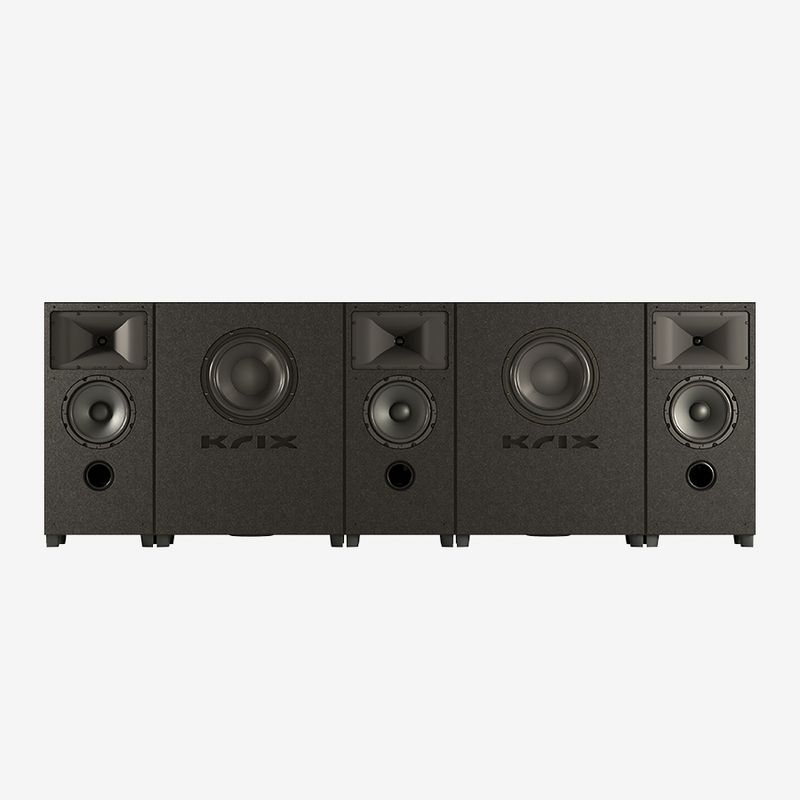

The MX-5 features five compact modules, allowing easy installation behind an 透声 screen in a wall cavity, on a shelf or cabinetry, or below a projector screen.
资料来自 Krix 官网。澳洲设计制造。
品牌：Krix / 凯瑞斯 澳洲制造
型号：MX-5
系列：私人影院系列
SYSTEM RECOMMENDATIONS：Minimum screen size 16:9
95″ (2103mm x 1183mm)：Minimum screen size 21:9
：LCR SPEAKER MODULES
频响：40Hz-20kHz in room response
承受功率：100 – 300 Watts RMS recommended amplifier power
灵敏度：92dB for 2.83 volts at 1 metre
阻抗：8 Ohms
单元结构：2-way
箱体形式：Bass reflex, front vented
低频单元：Single 205mm (8”) paper cone driver. 38mm (1½”) voice coil wound on high powered aluminium former, with ventilated magnet assembly and copper shorting ring for low distortion
高频单元：26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide
接线端子：Gold plated spring terminals
尺寸：700mm high x 315mm wide x 190mm deep (2040mm wide including subwoofer modules)
重量：12kg each
：SUBWOOFER MODULES
频响：30Hz-200Hz in room response
承受功率：200 – 350* Watts RMS recommended amplifier power
Recommended processing：High pass filter: 30Hz 24dB / Octave Butterworth
